- Applicable Industries:
-
Manufacturing Plant, Energy & Mining
- Condition:
-
New
- Type:
-
Impact Crusher
- Application:
-
laboratory
- Motor Type:
-
AC Motor
- Capacity(t/h):
-
20-25KHz Automatic tracking
- Place of Origin:
-
China
- Brand Name:
-
XINCHEN
- Dimension(L*W*H):
-
according to products
- Weight:
-
according to products
- Certification:
-
CE
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Online support
- Product name:
-
ultrasonic cell crusher
- Duty Ratio:
-
0.1-99.9
- Operating Frequency:
-
20-25KHz
- Crusher type:
-
Lab Sample Crushing
- Factory visit:
-
Warmly Welcomed
- Function:
-
Crushing Material
- VOLTAGE:
-
220V/50hz
- Temperature range:
-
0~100℃
- Amplitude transformer:
-
6mm
- Optional amplitude transformer:
-
2, 3, 8, 10, 15mm
- Supply Ability:
- 200 Set/Sets per Month
- Packaging Details
- Wooden case
- Port
- Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 10 To be negotiated
Description:

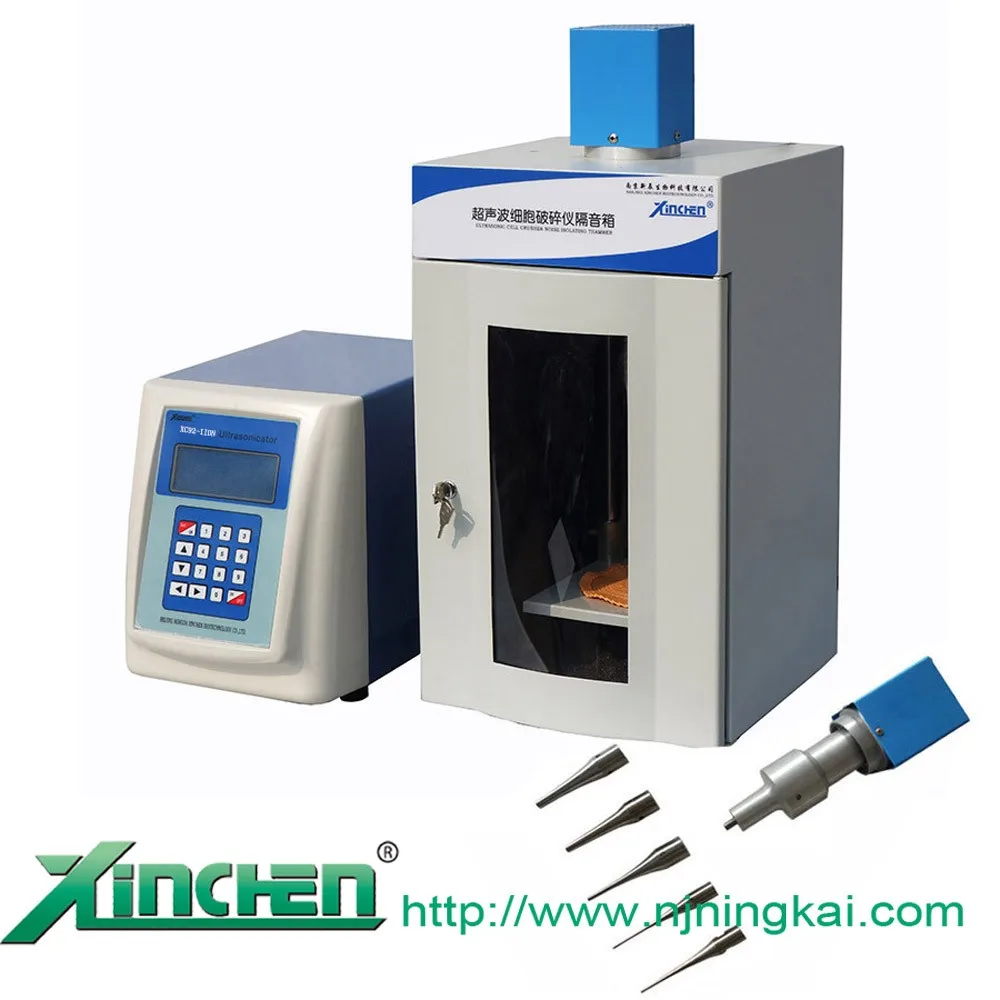

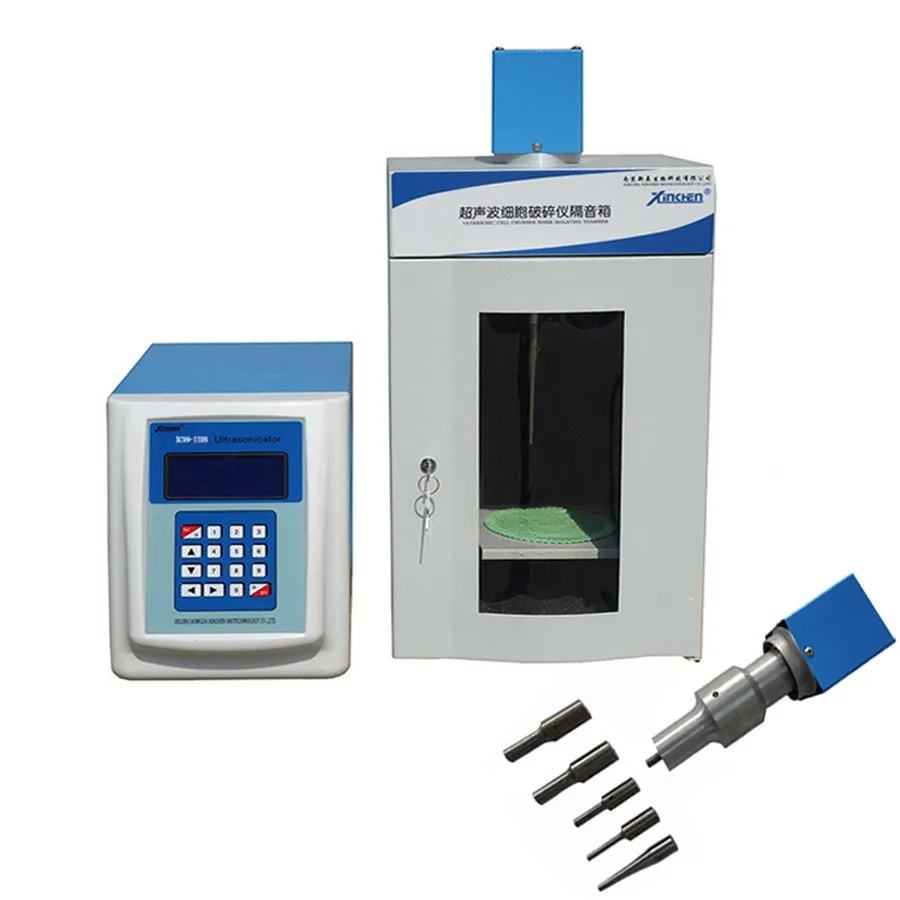

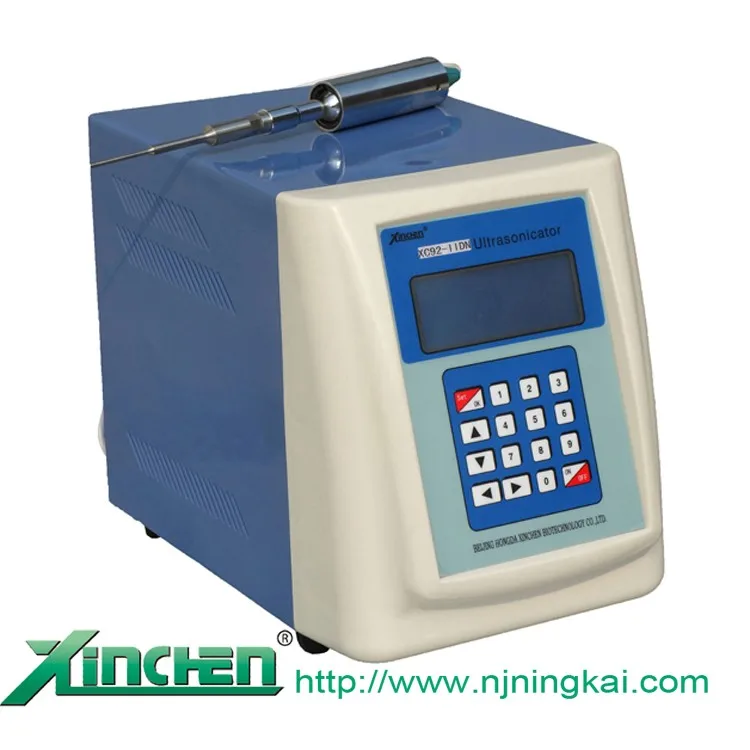

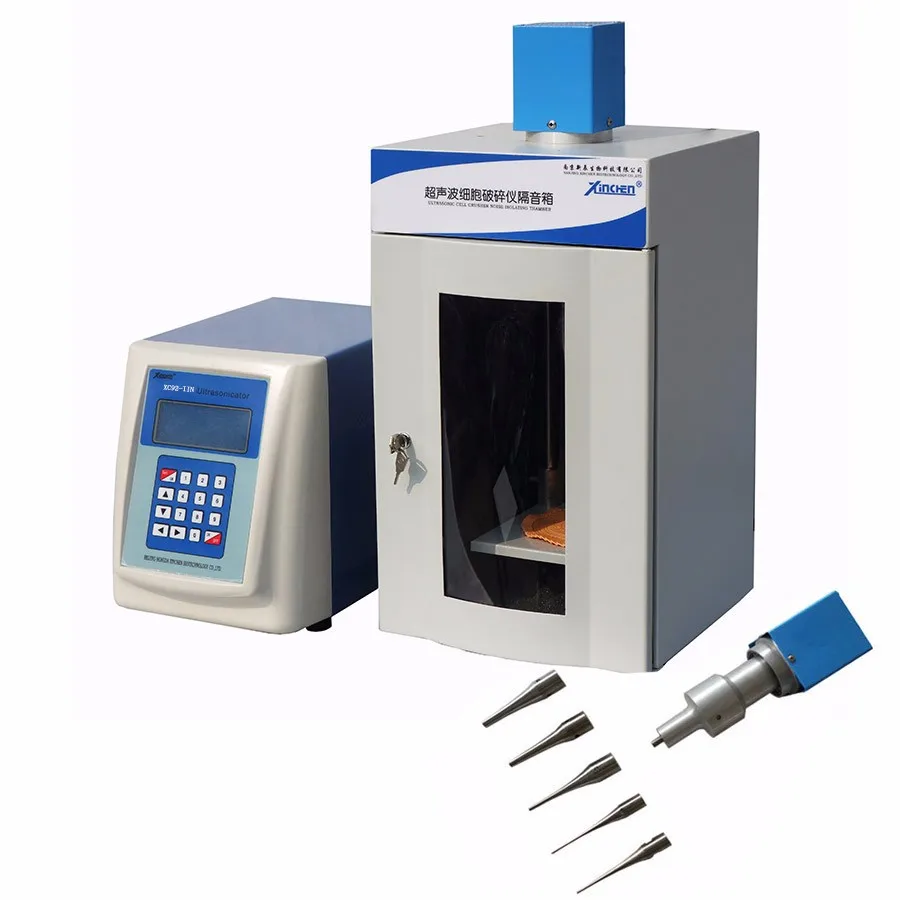

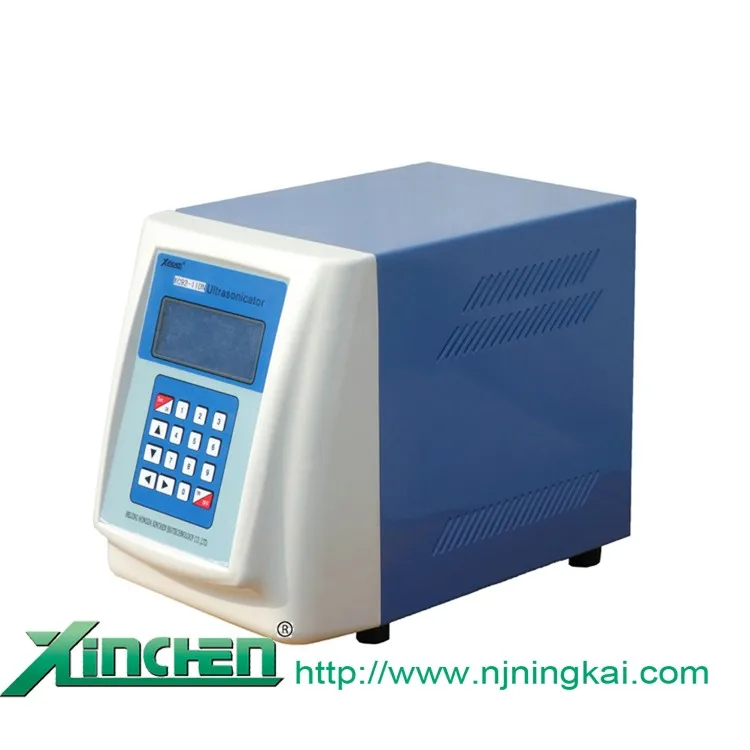

Xinchen Ultrasonic Homogenizer series is designed for applying a cavitation effect in a liquid by means of Ultrasonic waves. It can be used to disintegrate cells of various kinds of animals and plants, viruses, bacteria, tissues as well as to reshape inorganic substances. It can also be used in emulsification, separation, distribution, collection cleaning and nano-material preparation, dispersion acceleration of chemical reactions, ect. It has wide applications in teaching, researching, and manufacturing in many fields such as biology, microbiology, physics zoology, agriculture and pharmacology.

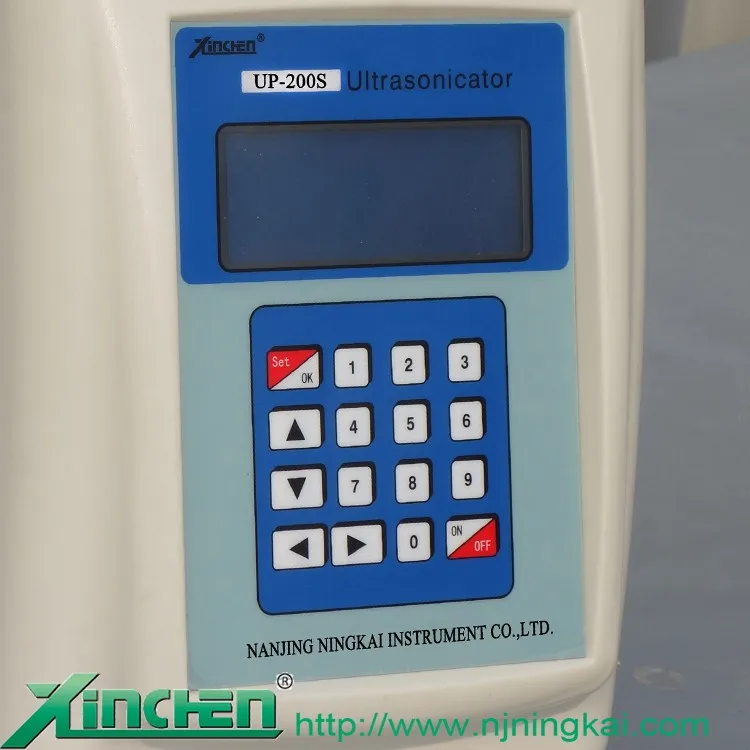

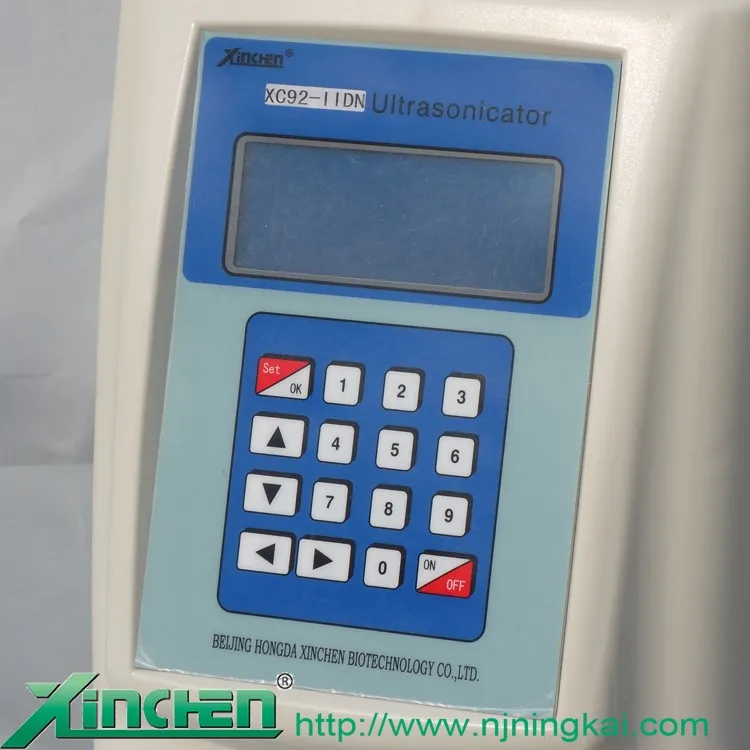

As a new type of Ultrasonic Homogenizer, it enjoys complete functions, novel appearance and reliable performance. It has a large-screen display and concentrated control by a central computer. The ultrasonic time and power can be set accordingly. Besides, such functions as sample temperature display, actual frequency display, computerized tracing and automatic trouble warning can all be displayed in the large LCD screen.
Features:
1.Novel design, Complete-function, High efficiency and low cost laboratory homogenizer
2.Reliable ability, Large LCD digital display, Fully microprocessor controlled and completely programmable
3.Auto-tuning for convenience use and optimal processing
4.Temperature indicator and controller ,Time setting
5.Power-emitted display for accuracy and repeatability, Variable power output, 0-950 watts
6.Actual frequency display and computerized tracking
7.Integrated Sound Abating Chamber to reduce cavitational sound emitted during processing
Frequency(KHz) | 20～25 | |
Power(W) | 650 | |
Random amplitude transformer(Ф) | 6 | |
Optional amplitude transformer(Ф) | 2、3、8、10、15 | |
Crushing capacity (ml) | 0.2～500 | |
Duty ratio (%)： | 0.1～99.9 | |
Power source： | 220V/50Hz | |
Net Weight of Machine(kg)： | 13.5 | |
Power supply chassis size(mm): | 400*280*220 | |
Soundproof box size(mm): | 285*290*480 | |
Characteristic: Using PWM control switch power supply,Power can be adjusted continuously,good stability,Can store 51 sets of experimental data,（With USB/RS232 interface,Remote control can be realized.） | ||

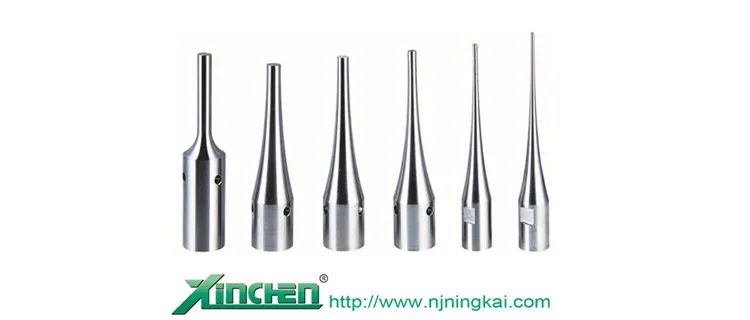

Amplitude transformer type | Frequency(KHz) | Power | Crushing volume |
Ф2 | 20～25KHz | 10～300W | 0.2～5ml |
Ф3 | 20～25KHz | 10～400W | 1～10ml |
Ф6 | 20～25KHz | 20～650W | 10～150ml |
Ф10 | 20～25KHz | 50～900W | 50～250ml |
Ф15 | 19～20.5KHz | 100～950W | 50～500ml |
Ф20 | 19～20.5KHz | 200～1000W | 100～800ml |
Ф22 | 19～20.5KHz | 200～1200W | 200～1000ml |
Ф25 | 19～20.5KHz | 400～1800W | 200～1200ml |
Warranty：
1 Year warranty, and free replacement parts.
This warranty does not apply to normal wear and tear.
Please contact us for more details.
