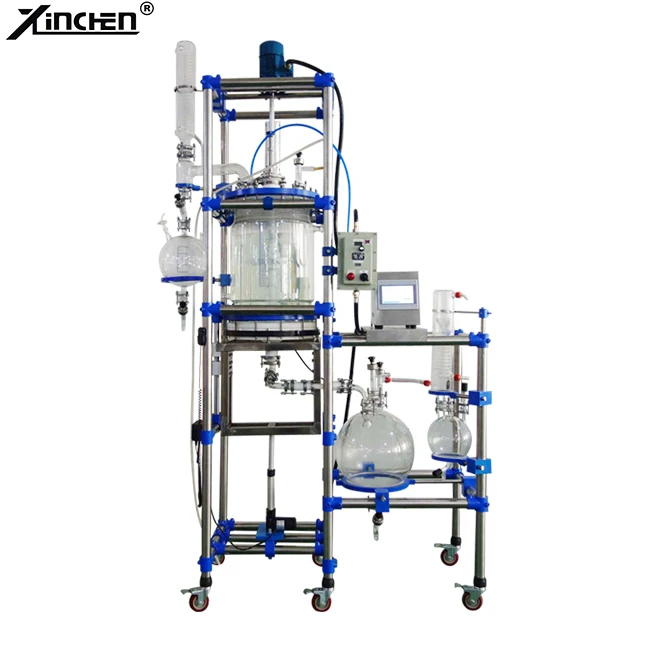

High quality 100L Jacketed glass reactor with PLC control

FOB Reference Price:Get Latest Price
$5,000.00 - $12,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
50l
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Customized products (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Automatic Grade:
Semi-automatic
Type:
Reaction Kettle
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
XINCHEN
Voltage:
220V/50Hz
Power:
250W
Dimension(L*W*H):
As design
Weight:
according to products
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Applicable Industries:
Manufacturing Plant, pharmaceutical factory
Product name:
Chemical Reactor
Product type:
Double Glass Reaction Kettle
Glass Material:
High Borosilicate Glass GG3.3
Sealing Type:
Mechnical Seal
Heating Type:
External Heater(optional)
Mixing Shaft:
PTFE Stirring Blade
Vacuum Degree:
0.098 Mpa
Rotating speed(rpm):
50-600rmp
Motor:
Explosion-Proof optional
Application scope:
Pharmaceutical Liquid
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
WOODEN CASE
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Description:
The glass reactor can be designed to be double glass reactor or tripe jacket reactor. The reaction menstruum can be put into the inner layer to do stirring, interlayer can be connected with cold and heat source (frozen liquid, hot water or hot oil) to do circulating heating or cooling reaction. Under the setting of constant temperature, in sealed glass reactor, , stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating, and also can carry out reflux and distillation of the reaction solution. This machine is an ideal production equipment for the modern fine chemical, pharmaceutical and biological synthesis of new materials.

Features:
1)The whole stainless steel column, mobile framework, 4~6 cover of the reaction kettle, with full set of glass for reflux, adding liquid, temperature measurement, and so on.
2) Use G3.3 high borosilicate glass, with good chemical and physical properties.
3) Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition.
4) With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency.
5) AC reducer motor, strong torsion, no noise.
6) PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing.
7) PTFE discharge valve, movable interface, discharging completely and quickly.
8) Our company can design special kettle body structure according to customer requirements (such as: PH meter, sand core filter etc.)

All the reaction kettle can be made of explosion-proof device according to the customer request.(The explosion-proof device refers to the explosion-proof motor + Explosion-proof control box + Explosion-proof temperature field display instrument); Specification for explosion-proof kettle is: FBXC-□□L

Related products
Our factory

Nanjing Ningkai Instrument Co., Ltd. is located in Guli Industrial Park, Nanjing City.
We are specializing in the production of glass (metal) reactor and self-contained complete refrigeration heating temperature control system, Ultrasonic cell crusher, Industrial Ultrasonic treatment equipment, Rotary evaporator, high (low) temperature thermostatic bath and so on.
All our products can be customized according to your requirements.
Any inquiry and requirement will get our prompt attention.
