Short path molecular distillation (short-path distillation) is a new separation technique that addresses the problems that conventional distillation techniques cannot solve. It can achieve "liquid-liquid" separation at very low vacuum according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point; Mainly the use of scraper system forcing liquid film evaporation or distillation of a highly efficient evaporation, distillation equipment, deodorization, degassing reaction and supporting heating, cooling and other unit operations, can be widely used in food, fine chemicals , Electronic materials, plastic engineering and polymer (such as polyols, fatty acids, polyphenols, polyurethanes, epoxy resins, milk fat, GMS, flavors and fragrances, heavy oil and paraffin oil) purification and so on. The system can also be used to recover organic solvents from industrial effluents. Especially suitable for high boiling point, heat-sensitive, easily oxidized material separation and purification.
Working principle： ①Operating temperature is far below the boiling point of the material, thermal material handling, bio-acid fat, high boiling point, difficult to steam out of the material has great advantages ②Heating time is very short, ordinary distillation need to heat a few hours in the process, short-range distillation can be done on the tens of seconds, low carbon and environmentally friendly and conducive to maintaining the material activity ③Belong to the physical separation process, can keep the natural state of the material from pollution. Widely used in high value-added materials deodorization, bleaching and purification.
Products features： ①Evaporation tube body using G3.3 borosilicate glass: easy to observe the material under different conditions of pressure, temperature, flow and speed changes (such as material color, viscosity, film-forming effect, out of the critical point, etc.). Help to get the best process parameters and experimental data. ②Can achieve precise temperature control: the maximum temperature of the evaporation tube system can reach 200 ℃, the maximum temperature within the jacket up to 300 ℃; ③Transmission system: The magnetic coupling transmission, to ensure high-speed operation of the evaporation cylinder pressure limit system up to 0.001mbar ④Film self-cleaning roller or scraper system through the centrifugal force of the material into a film to improve the evaporation efficiency and reduce operating time; ⑤High cleanliness: the material in the separation process only contact with glass and PTFE composite material, no other pollution. ⑥Ease of maintenance: all flange design, easy disassembly. ⑦According to customer requirements, evaporation tube specifications Φ60 ∽ Φ300 optional.

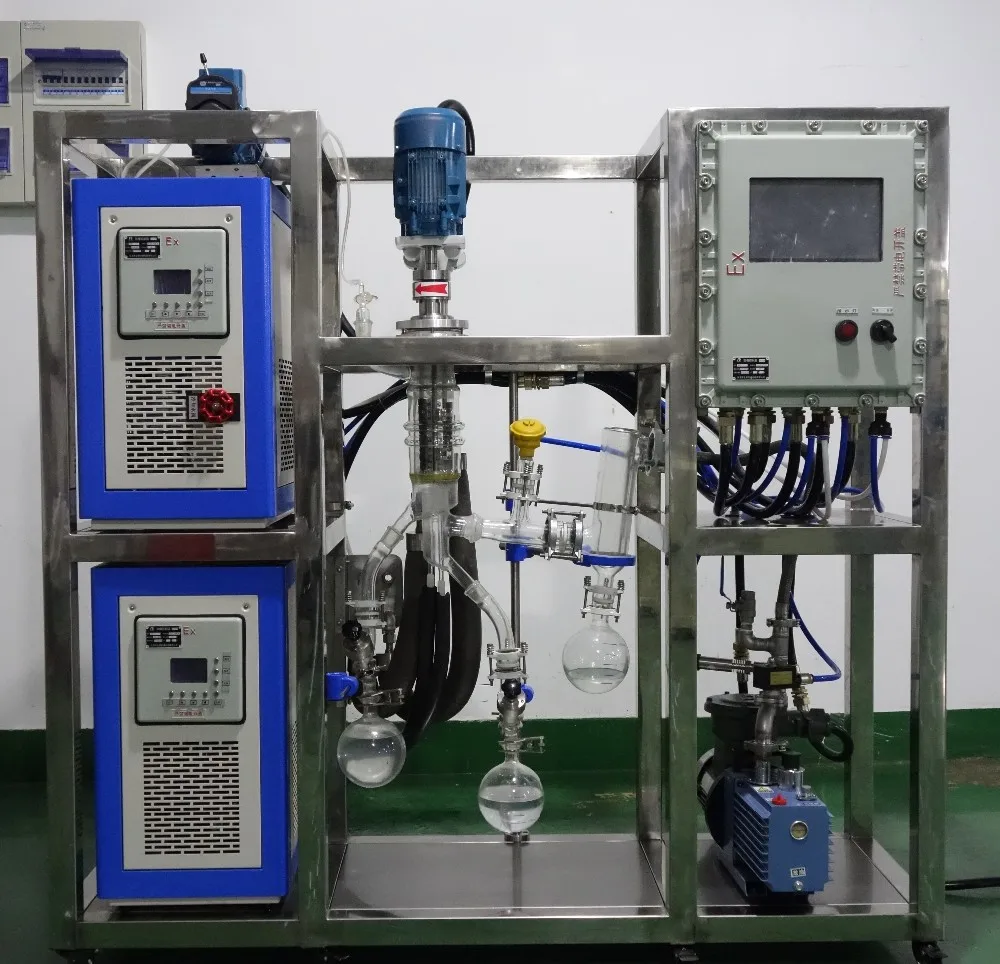

explosion-proof PLC control
explosion-proof stirring motor and explosion-proof heating circulator
evaporation tube specifications Φ (mm)
Evaporation tube heat transfer area(㎡)
Built-in cooling area (㎡)
Constant pressure feeding bottle( L)
Sample throughput (L/H)
Remarks： 1、Continuous feed of metering pump can be used 2、Optional PLC Control system and Explosion-proof configuration

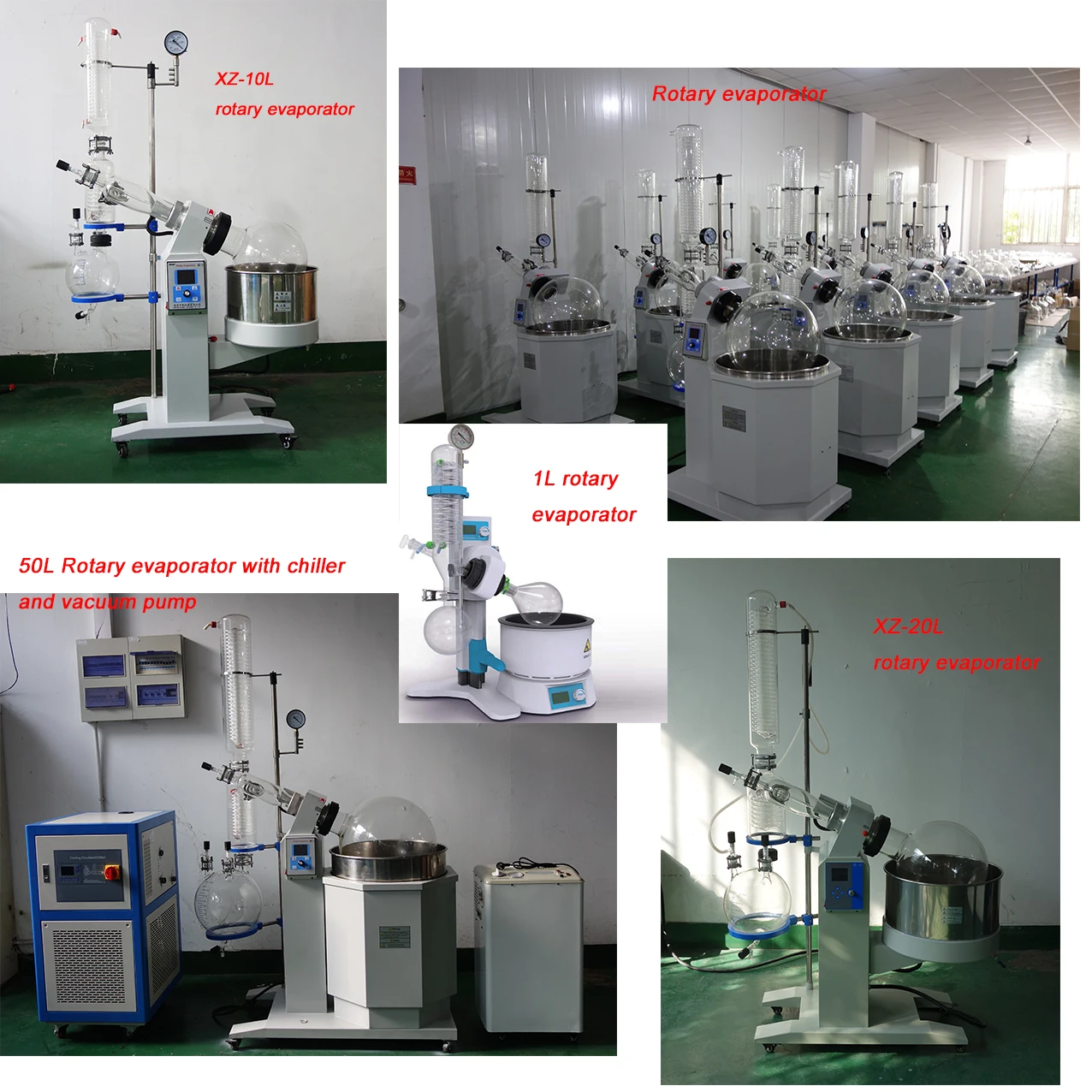

Nanjing Ningkai Instrument Co., Ltd. is located in Guli Industrial Park, Nanjing City. We are specializing in the production of glass (metal) reactor and self-contained complete refrigeration heating temperature control system, Ultrasonic cell crusher, Rotary evaporator, high (low) temperature constant temperature trough and so on. All our products can be customized according to your requirements.
Exhibition and Certification
Packing & Delivery
Pre-Sales Service * Inquiry and consulting support. * View our Factory. * Customization
After-Sales Service * Training how to install use the machine. * Engineers available to service machinery overseas. * Warranty for 12 months.
Technical Support * 24-hour technical support by email or by video. * Technical training service is provided to customers.
Warranty * 12 months guarantee for whole machine. * Lifetime service for all sold equipment.
Customized Service * Professional system solutions can be provided according to customer's drawings or requirements. * We have R&D team and designers who can work for customer's project. * Drawings, production and testing will be conducted under customer's inspection. * OEM, ODM products are supplied.
