Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Manufacturing Plant, Pharmaceutical
chemical pilot reactor
G3.3 High Borosilicate Glass
agitator blade material:
SUS304 & PTFE coated
Diameter of agitating shaft:
Other auxiliary equipments:
tempearture range of heating circulator:
100 Unit/Units per Month
Packaging & Delivery
1 - 1
To be negotiated

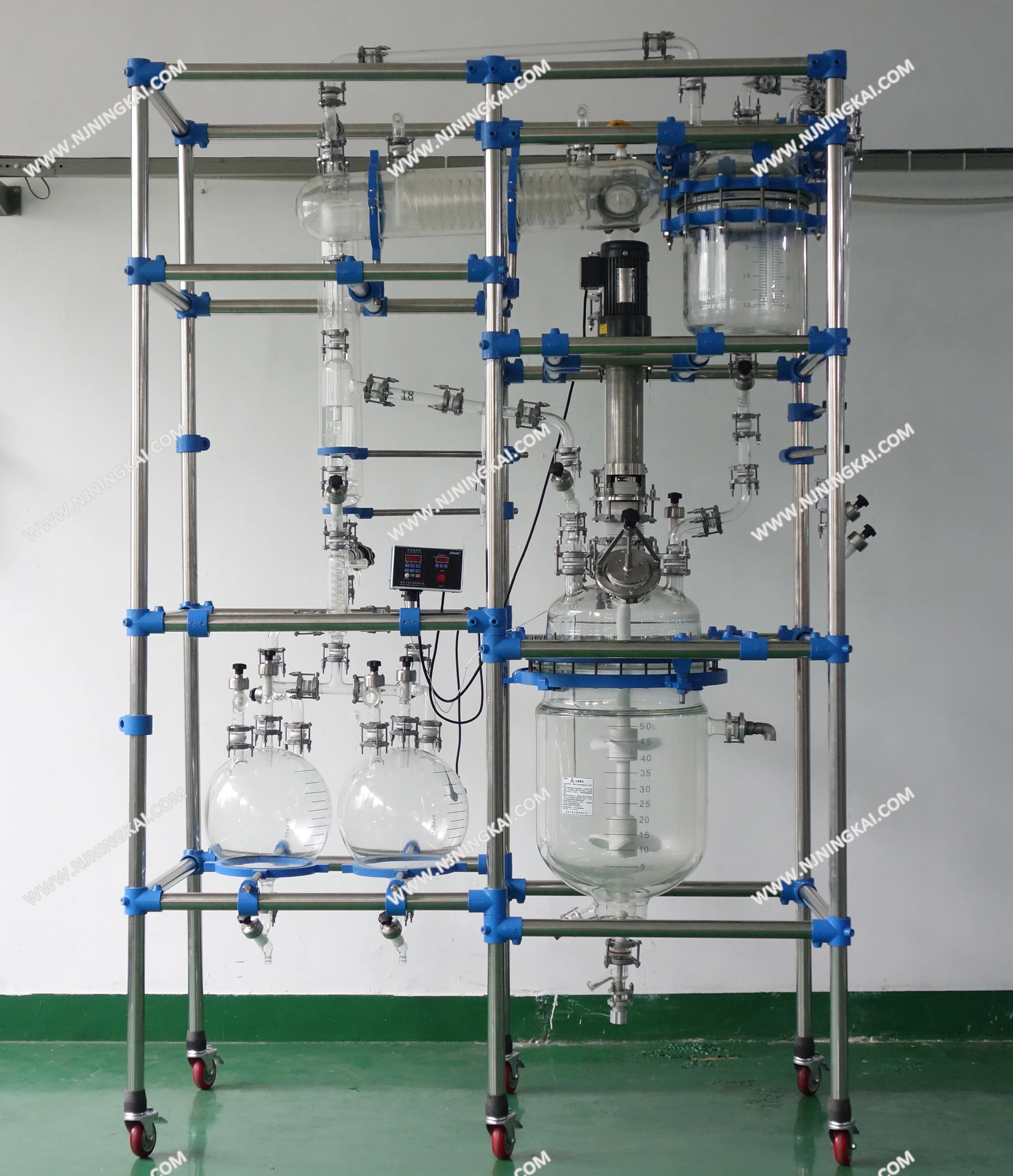

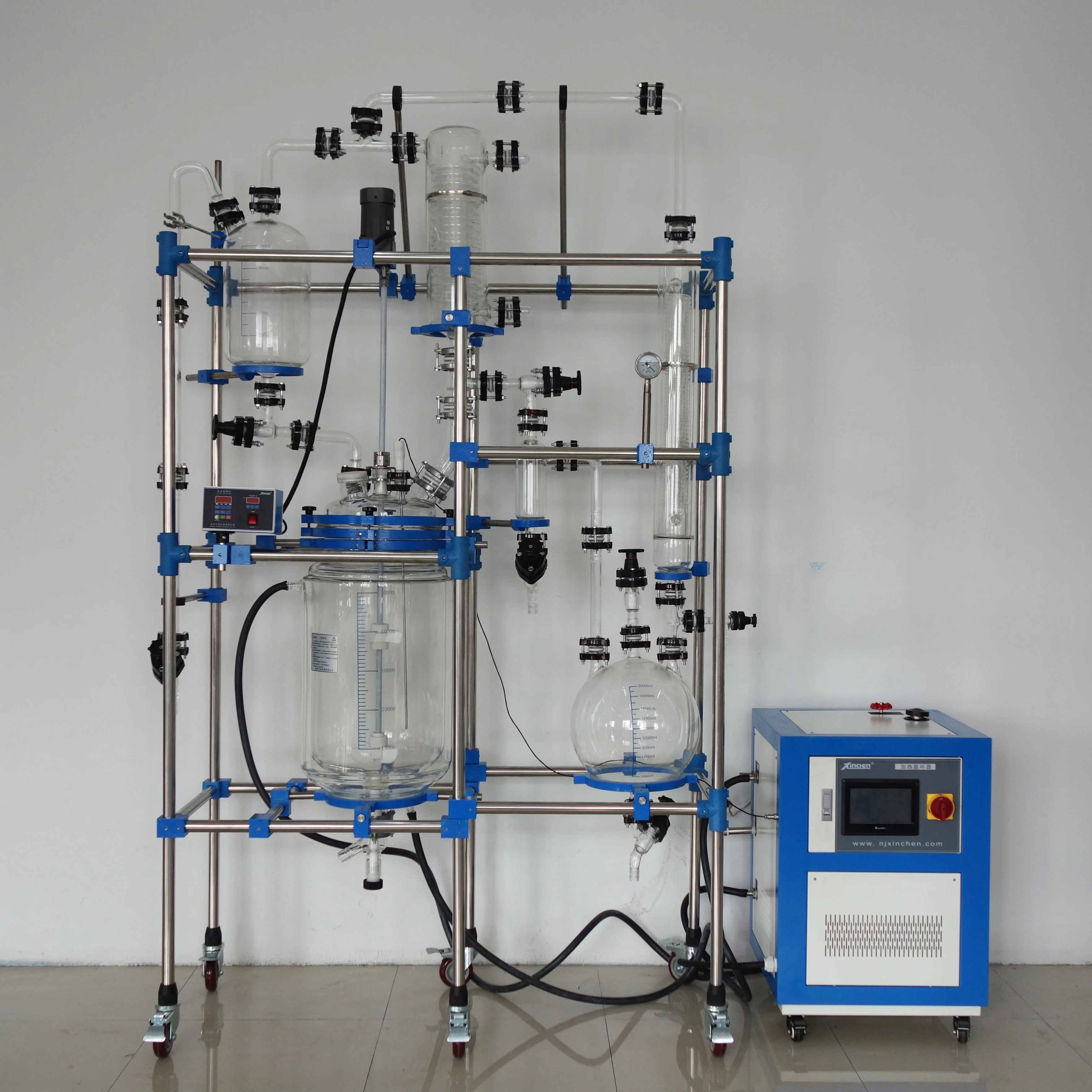

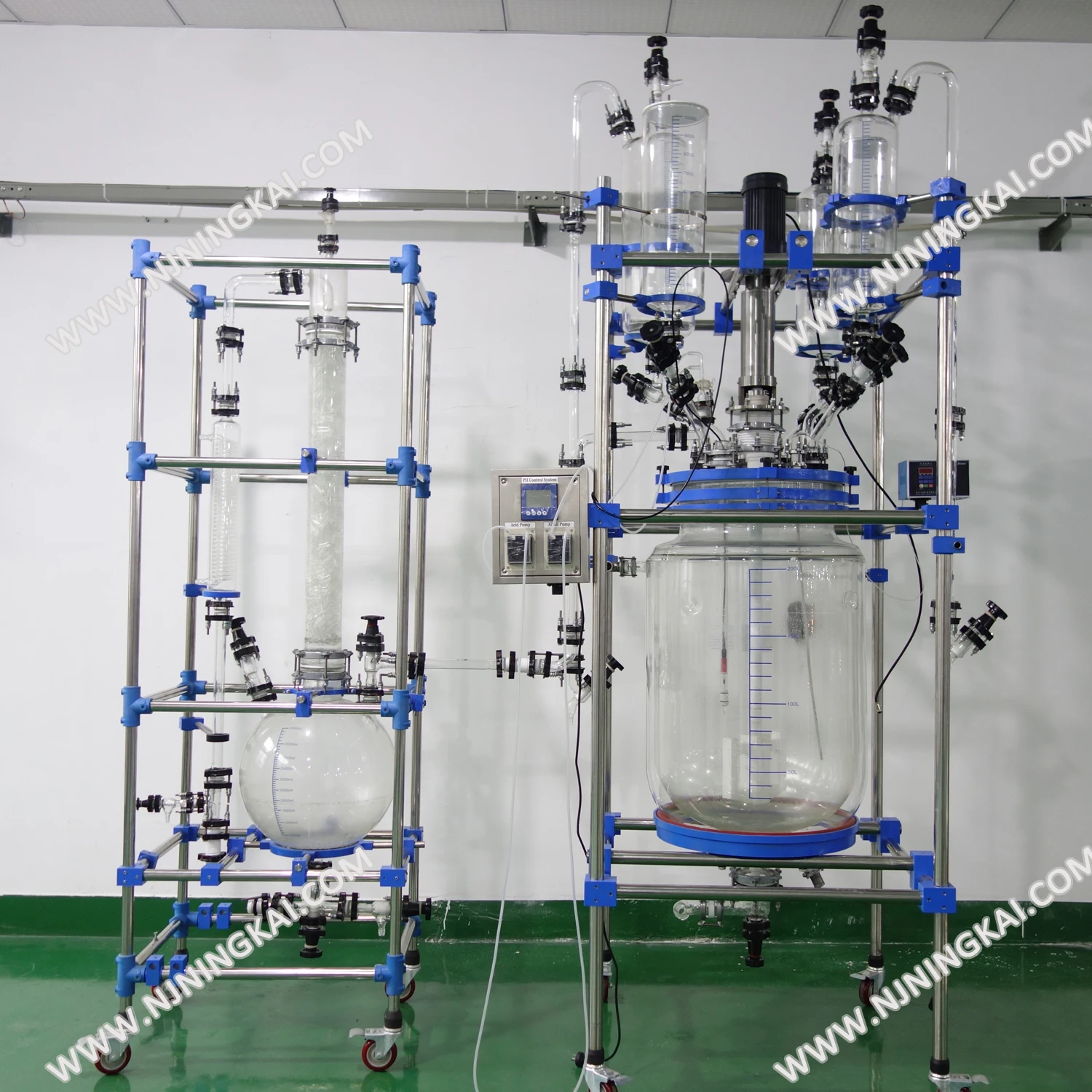

Description: The glass reactor can be designed to be double glass reactor or three layers glass reactor. The reaction menstruum can be put into the inner layer to do stirring, interlayer can be connected with cold and heat source (frozen liquid, hot water or hot oil) to do circulating heating or cooling reaction. Under the setting of constant temperature, in sealed glass reactor, , stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating, and also can carry out reflux and distillation of the reaction solution. This machine is an ideal production equipment for the modern fine chemical, pharmaceutical and biological synthesis of new materials.
Features: 1）The whole stainless steel column, mobile framework, 4~6 cover of the reaction kettle, with full set of glass for reflux, adding liquid, temperature measurement, and so on. 2） Use G3.3 high borosilicate glass, with good chemical and physical properties. 3） Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition. 4） With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency. 5） AC reducer motor, strong torsion, no noise. 6） PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing. 7） PTFE discharge valve, movable interface, discharging completely and quickly. 8） Our company can design special kettle body structure according to customer requirements (such as: PH meter, sand core filter etc.)
All the reaction kettle can be made of explosion-proof device according to the customer request.（The explosion-proof device refers to the explosion-proof motor + Explosion-proof control box + Explosion-proof temperature field display instrument）; Specification for explosion-proof kettle is: FBXC-□□L
Neck No. on lid
External diameter of the inner vessel(mm)
External diameter of the outer vessel(mm)
Customized 80l three layer glass reactor with PLC controller

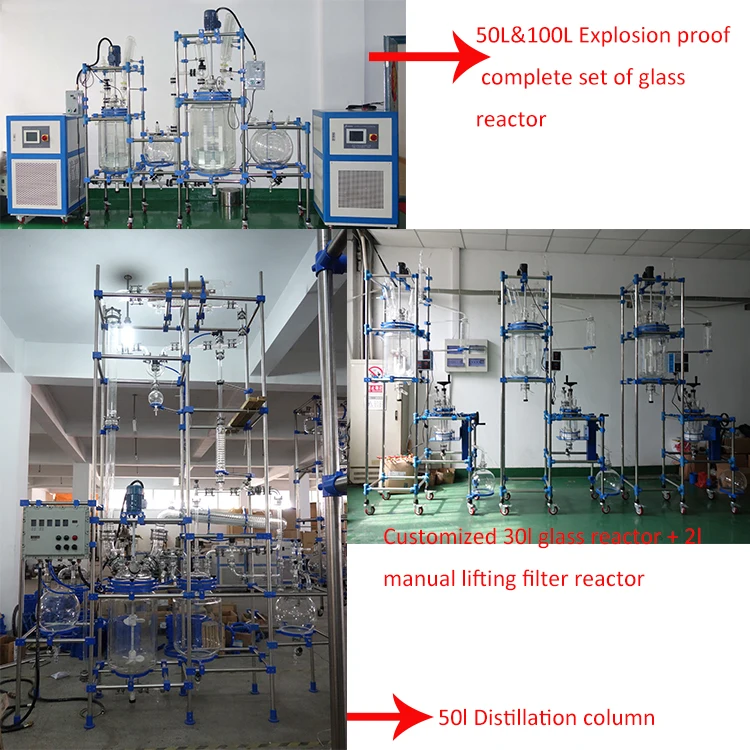

50L explosion-proof three layer lifting glass reactor
Nanjing Ningkai Instrument Co., Ltd. is located in Guli Industrial Park, Nanjing City. We are specializing in the production of glass (metal) reactor and self-contained complete refrigeration heating temperature control system, Ultrasonic cell crusher, Industrial Ultrasonic treatment equipment, Rotary evaporator, high (low) temperature thermostatic bath and so on. All our products can be customized according to your requirements. Any inquiry and requirement will get our prompt attention.
* TRAINING HOW TO INSTALL USE THE MACHINE. * ENGINEERS AVAILABLE TO SERVICE MACHINERY OVERSEAS. * WARRANTY FOR 12 MONTHS.
Q1. What is your terms of payment? A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery? A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time? A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
