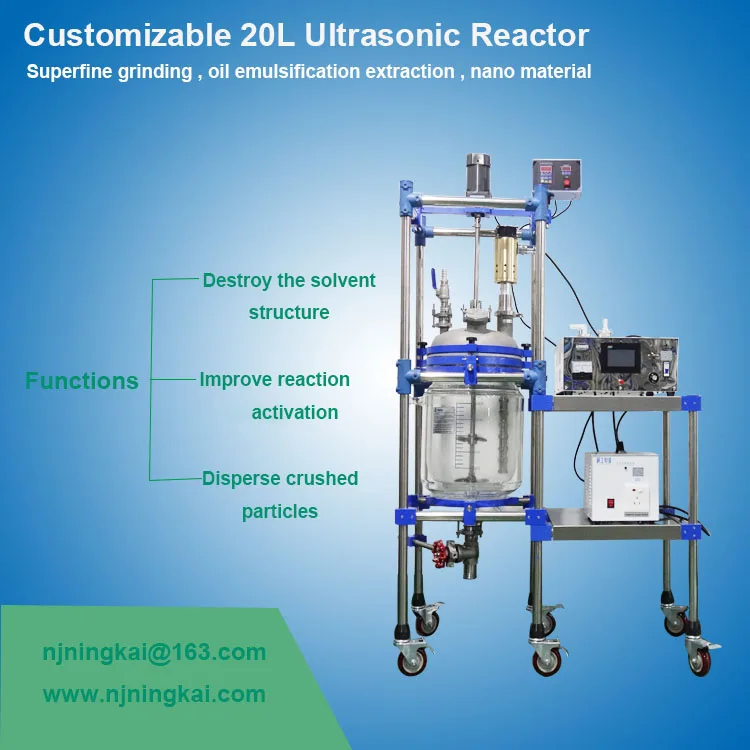

20L Customizable Ultrasonic Jacketed Reactor for Oil Emulsification Extraction

  • 1 - 1 Sets
    $6,500.00
  • 2 - 2 Sets
    $6,300.00
  • >=3 Sets
    $6,100.00
Model Number:
NKG-0.5KW NKG-1.0KW NKG-1.5KW NKG2.0KW NKG-3.0KW
Samples:
NKG-3.0KW
$6,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 10 12 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
OEM ODM, etc (Min. Order: 2 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Capacity:
20l
Automatic Grade:
Automatic
Type:
Reaction Kettle
Condition:
New
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Motor, Gear, Pump
Place of Origin:
Jiangsu, China
Brand Name:
XINCHEN
Voltage:
220V/110V/50-60Hz
Power:
3.0kKW
Dimension(L*W*H):
As Design
Weight:
125KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Easy to Operate
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops, Petroleum Chemical Nano Material Animal Plant Cell
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Frame Material:
SUS 304
Glass Material:
High Borosilicate Glass 3.3
Motor:
Explosion Proof Motor Optional
Agitator:
316L Agitator
Sealing Type:
Mechnical Seal
Heating method:
Hot Oil
Rotating speed(rpm):
50-600rmp
Vacuum Degree:
0.098 Mpa
Color:
Customer's Requriements
Working temperature:
-80-250 degree
Supply Ability
Supply Ability:
300 Set/Sets per Month Max annual output 3500 sets , min annual output 3200 sets
Packaging & Delivery
Packaging Details
Standard export carton and fumigation wooden case with inner efficient protections . For the safety of the glass components and accessories, some foam boards and bubble films will be put into carton package or the wooden package .
Neutral package and other packages with custom made are also available .
Port
Place of departuring: Shanghai / Nanjing/ Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 10 12 15 To be negotiated
Product Description
Ultrasonic chemical reactor is suitable for various ultrasonic extraction, ultrasonic catalysis, ultrasonic micro reaction, ultrasonic high-pressure synthesis, ultrasonic crushing, ultrasonic separation, hydrogenation, gas-liquid two-phase, liquid-liquid two-phase, exothermic reaction and fine chemical industry. It is widely used in nano industry, biology, petrochemical industry, chemistry, pharmacy, polymer synthetic dye, jewelry, aerospace, metallurgy, automobile manufacturing and other fields.

Product Advantages & Features

1. Small size, beautiful appearance and simple operation.
2. Modular design, heating module and control module are separated, safe and reliable. 3. The ultrasonic power, ultrasonic time, amplitude and frequency can be adjusted to meet the requirements of different working conditions. 4. Double temperature control inside and outside the ultrasonic chemical reactor, accurate temperature control, temperature control accuracy ± 1 ℃. 5. The mixing speed is stable and adjustable. 6. High temperature magneton stirring, temperature resistance 250 ℃. 7. Automatic resonance point and power control, without frequent manual adjustment of energy. 8.99 hour process control timer, control the total working time: from 1 second to 99 hours, pause the current running task in real time. 9. The working time is displayed in cumulative state. 10. On / off pulse timer: ensure that the high-intensity processing of temperature sensitive samples, on and off cycle can be set from 1 second to 99 minutes. 11. Automatic amplitude compensation to ensure that the probe amplitude does not change due to load changes during the ultrasonic process. 12. Sample overload / over temperature protection device. 13. Automatic frequency tracking, automatic fault alarm.

Product Applications

Ultrasonic jacketed glass reactors are widely used in Petroleum Industry , Chemical Industry , Food & Beverge Factory , Pharmaceutical Factory , Insectcide Factory , Metallurgical Industry , Scientific Institution , Environment Protection , Universities ,Construction & Building areas , Biology , Cosmetics , various Oil Extraction and Purification , etc .
Product Paramenters
Model
NKG-0.5KW
NKG-1.0KW
NKG-1.5KW
NKG-2.0KW
NKG-3.0KW
Resonant
20±1 KHZ
Power
0.5KW
1KW
1.5KW
2KW
3KW
Input Voltage
220 ± 10% /50 V/Hz
Temperature
-80℃ ~ 250℃
Emission head
50
50
50
50
50

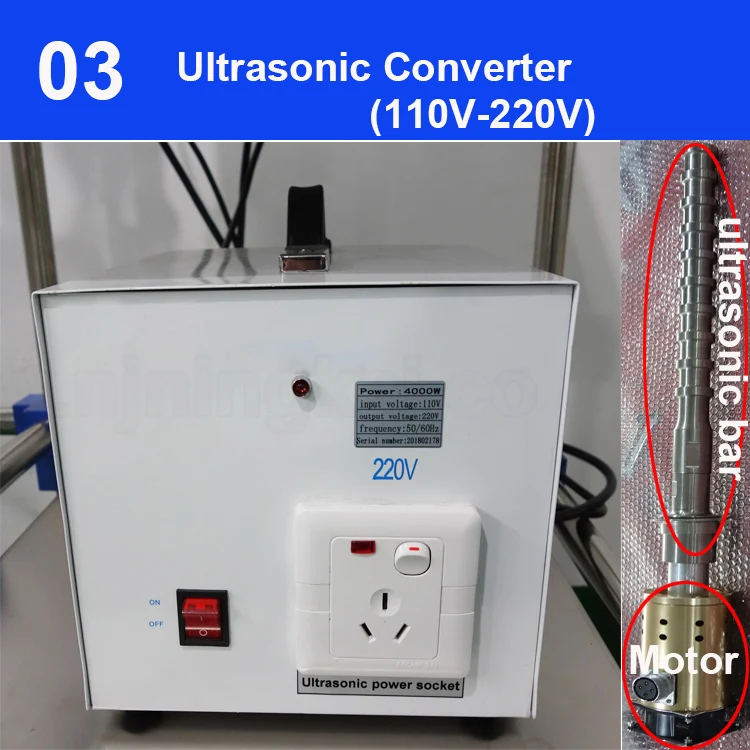

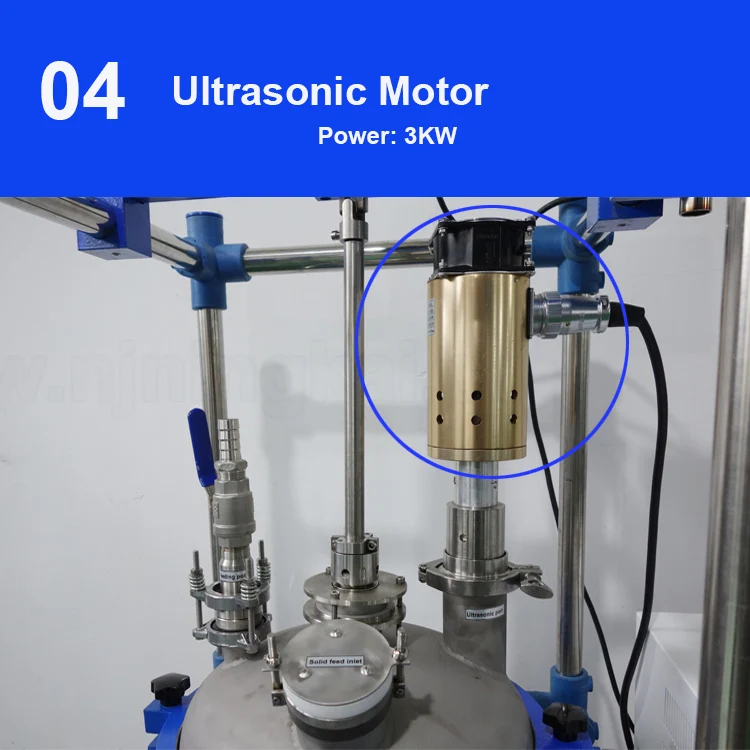

The ultrasonic generator
1. Fuzzy program-intelligent control 2. DDS frequency automatic detection and tracking
3. DSPcontrol circuit
4. Ultrasonic power output adjustable
5. Power device-IGBT
6.Continuous ultrasonic time up to 99 hours.

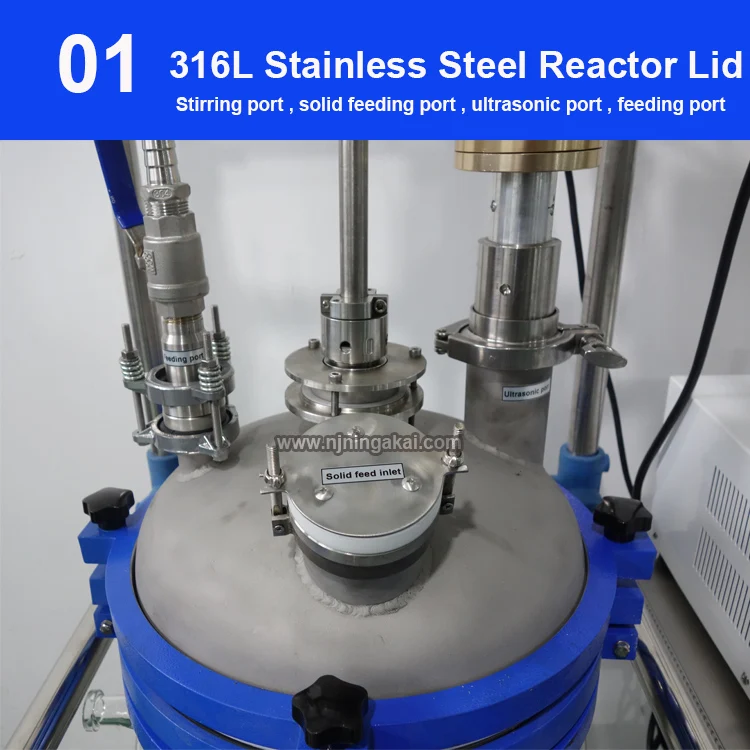

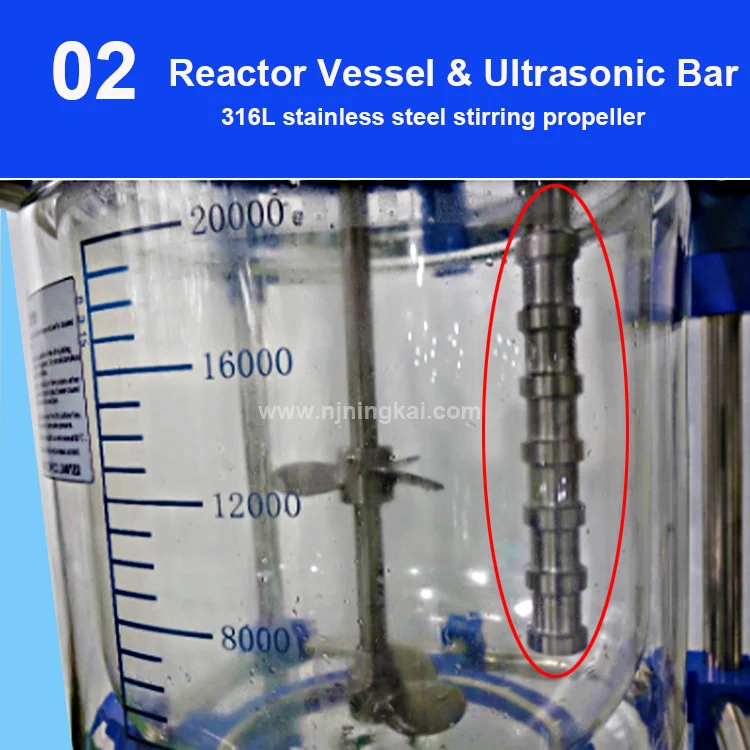

Details Images
Packaging & Shipping
Packaging: Standard carton package and wooden case package with inner protections( light weight material with protective ) . Some foam boards and bubble films wil be put into the inner package for any damage or other breakage with human wrong handling in loading and uploading . Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics ) .
Related products
Customized 20L ultrasonic reactor , 80L three layer reactor with chiller , 10L chemical reactor with PLC control , 30L glass reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device , 50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .

Recommended Products

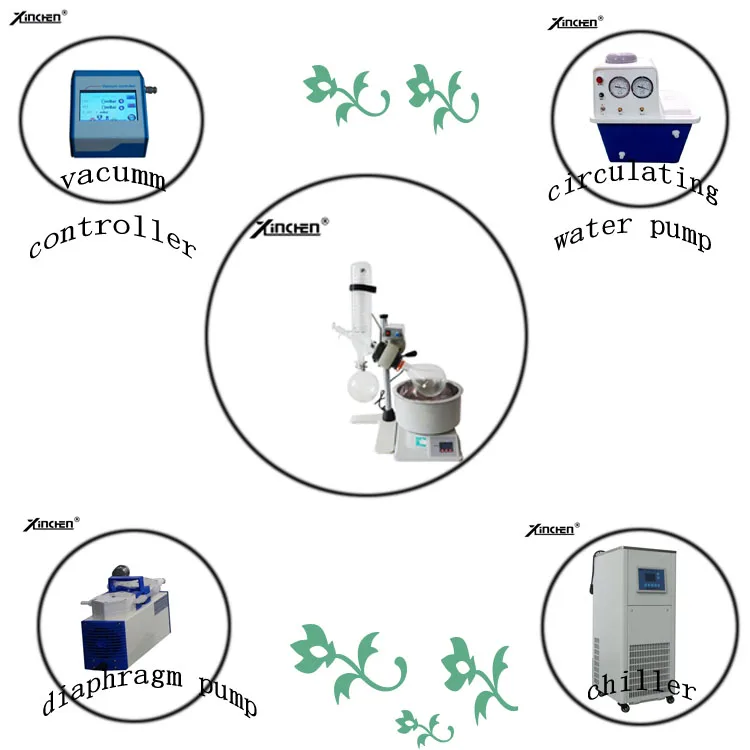

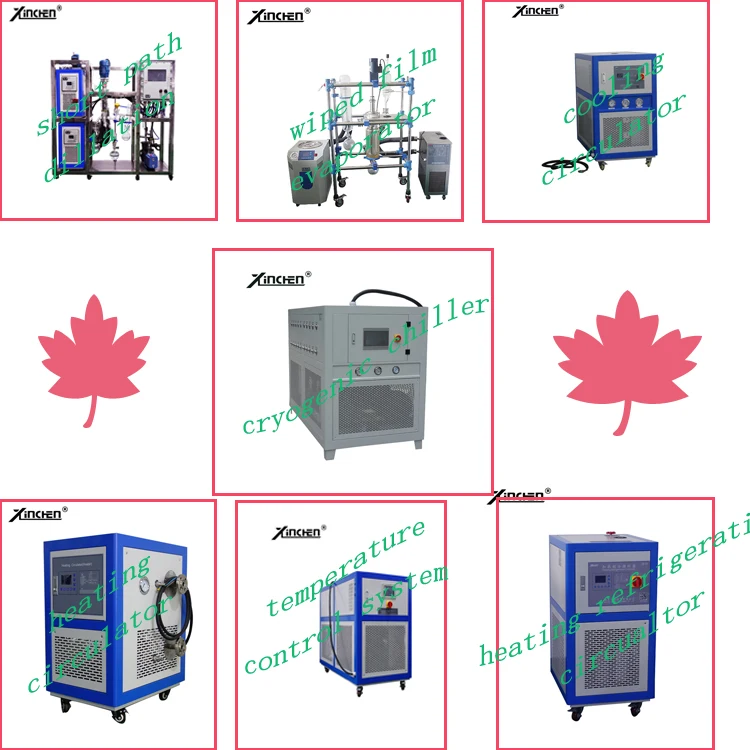

We would like to recommend our heating & cooling circulators , vacuum pumps , rotary evaporators , high temperature circulator and ethanol cryogenic chiller to you .
Our factory
Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development . Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher , Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .

Handmade Fire Glass and Processing of Production

We fire the glass by our own factory with unique crafts , so you should never care about the glass quality  that you would like to customize . At the same time , we have strict qualtiy control in the whole production line .

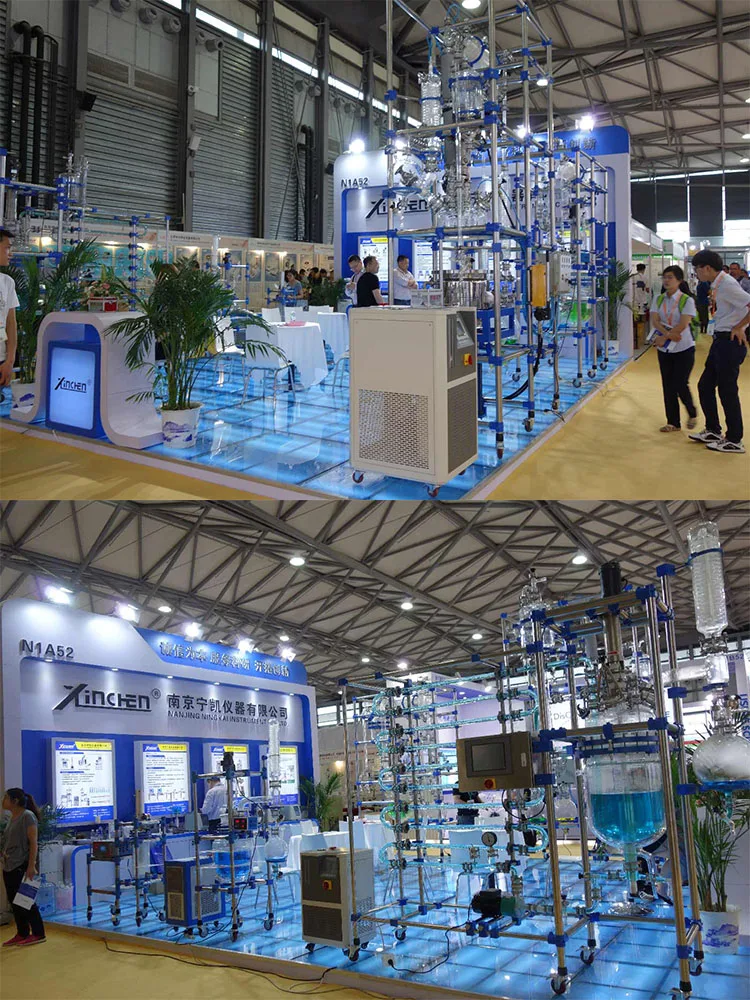

Exhibition and Certification
2017-2018 CPHI Shanghai & CE and ISO Certificates

Our Advantages

1. We have been in this line for about ten years , with rich experience in marketing , developing , researching , engineering ,
etc.
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .
5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .

Our Partners

Peking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec , EYELA , Toption , AUCMA , BT4 , HHitech , etc .
Our service
Pre-sale Service According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types; Provide detailed product performance specification; Provide professional quoted price; Provide 24-hour technical consulting reply. Provide other corollary equipment according to client requirements. In-sale Service Begin to supervise from raw material, its qualified rate can reach to 100%; Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%; Provide product’s inspection record of key junctures to customers; Provide production schedule photos to customers at regular intervals; Package and transport products strictly accordance with export standard; Provide transportation schedule information to clients timely. After-sale Service Provide targeted installation video; Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period; When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component; During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied; If product has malfunction during operation period, we’ll offer you satisfied answer in time. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information. Provide assistant service if product is damaged during transportation.

Glassware Specifications

According to the nominal diameter , the maximum allowable working pressure value(Mpa) of the pipe used shall comply with the following table:
DN
DN15
DN20
DN25
DN40
DN50
DN80
DN100
DN200
DN400
Mpa
0.2
0.2
0.15
0.15
0.1
0.1
0.1
0.1
0.07
DN15
DN20
DN25
DN40
DN50
N80
DN100
DN200
DN215
DN400
1/2"
3/4"
1"
1.5"
2"
3"
4"
8"
9"
16"

RFQ

1. What’s the difference between single-layer and double-layer glass reactor? Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better. 2.How to decide which glass reactor I should buy? Single-layer or double-layer? According to first question, please depend on specific heating or cooling requirements. 3.What is the glass texture? Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties. 4.What’s the loading capacity of double-layer glass reactor? Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating. 5.What kind of oil does the reactor use to heat? For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil. 6.Is it easy to wash the reaction bottle? Big access opening, convenient to wash. 7.What kind of payment term do you accept? Normally we accept TT , Alibaba Escrow, and L/C. The exactly term with be discussed during the deal. 8.How will you delivery these goods? It will be decided according to your quantity. Normally we will choose International Express, Air and sea.. 9.How to package the products? We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
