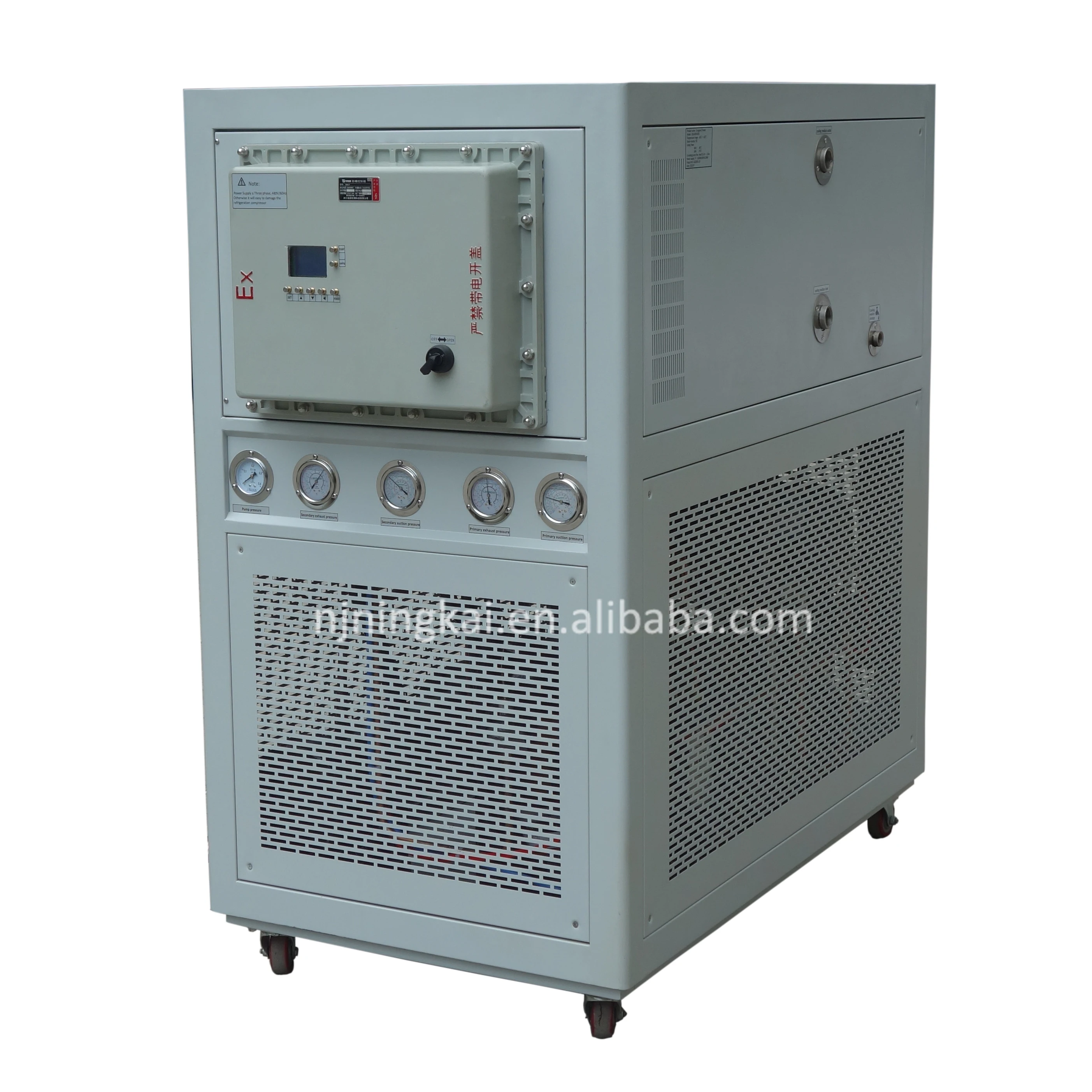

EX Ultra Low Temp. Chiller Industrial freezer Industrial freezer

FOB Reference Price:Get Latest Price
$17,850.00 - $28,850.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DLS-06EW/EX
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Industrial
Condition:
New
Type:
Spiral Freezer
Place of Origin:
China
Brand Name:
XINCHEN
Voltage:
480V/60Hz
Power:
13KW
Dimension(L*W*H):
1200*1000*1400
Weight:
1005kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Cooling Capacity:
3440 Kcal/h
Laboratory water bath Model:
DLS-06EW/EX
Power supply:
480V 60Hz
Circulation pump flow:
75L/min
Pessure:
1.5bar
Temperature range:
-80℃~-20℃
Cooling capacity@-75℃:
3KW
Cooling capacity@-60℃:
6KW
Refrigerant:
R404A+R23
Expansion Valve:
Denmark Danfoss
Explosion proof:
Optional
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai, Nanjing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Description

Only need to connect the equipment with the liquid inlet and outlet of reactor device, from the top of the equipment liquid inlet add in the heat transfer medium, turn on add liquid button can easily remove the air in the system, set the temperature requirements, the system can run automatically. The heat transfer medium in a closed system, with expansion container, the liquid in the expansion container not participate in the circulation, either high or low temperature, expansion tank temperature is from room temperature to 50 ℃, can reduce the risk of heat absorption of moisture and volatile in the operation. In case of no changing the heat transfer medium, can be covered -90℃ to 200/300℃ temperature control range.

Product Model
DLS-06EW/EX
Temperature range
-80℃~ -20℃
Storage tank volume
50L
Cooling capacity
-60℃
6KW
-75℃
3KW
Circulating pump flow
75L/min
Pressure
1.5bar
Compressor
COPELAND
Power supply
480V/60Hz

Main Features

* Cycle Cooling medium: HTF, industrial alcohol or water-glycol mixture is circulated against the refrigeration, conservation of resources; tight loop piping design, prevent water pollution cycle, extending the cycle time of the use of water
* Multiple safety protection, more reliable
* Imported compressor, cold cascade refrigeration technology
* Using cold technology to ensure the stability of low temperatures
* It can be set to turn on the compressor and turn off the compressor temperature difference
* Ambient temperature detection function to prevent the system operating environment temperature is too high
* A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor overheating alarm, level alarm)
* A fully enclosed design, low temperature process without running water, to ensure the purity of the cold heat transfer medium, to prevent ice crystals, providing thermal fluid life;
* High-performance circulating pump, can ensure continuous operation 24 hours a day
* Using cold plate heat exchanger to provide heat transfer efficiency
