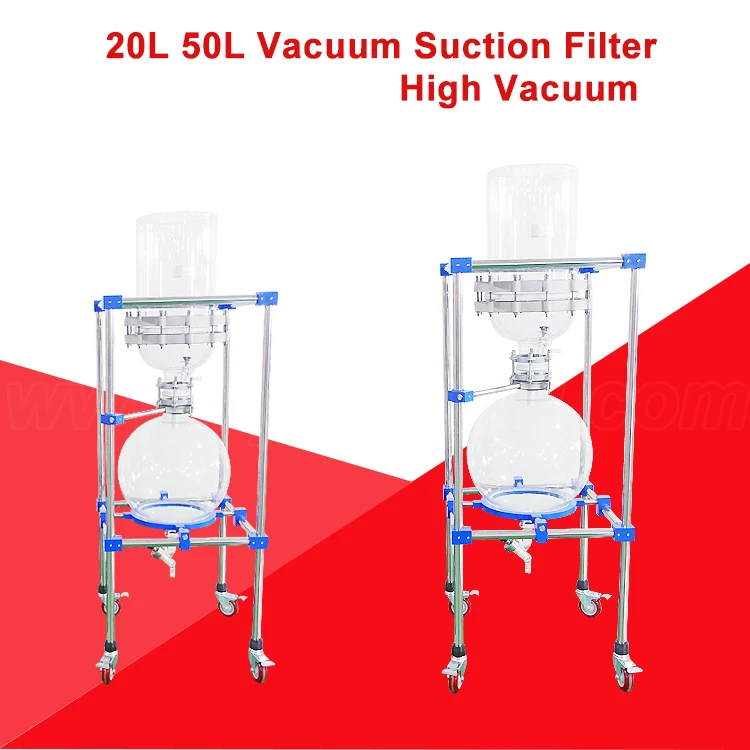

100L Lab Vacuum Suction Filter Machine Nutsch Filter Vacuum Filtration Apparatus with Removable Filter Plate and Vacuum Pump

  • 1 - 1 Sets
    $600.00
  • 2 - 2 Sets
    $550.00
  • >=3 Sets
    $500.00
Model Number:
ZKQ-10L ZKQ-20L ZKQ-50L ZKQ-100L ZKQ-200L
Samples:
$600.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
OEM ODM (Min. Order: 1 Sets)
Explosion Proof (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Laboratory CBD Oil Industrial Waste Water Chemical
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Gearbox, Motor
Place of Origin:
Jiangsu, China
Brand Name:
XINCHEN
Warranty:
1 Year
After-sales Service Provided:
Online support
Product Name:
Vacuum Suction Filter
Product Model:
ZKQ-100L
Glass Material:
G3.3 High Borosilicate Glass
Filter Plate:
PTFE Material Diameter 300mm
Filter Material:
Filter Paper or Filter Cloth
Filter Funnel:
DN300*420mm
Collect Flask:
100 Liters
Discharge Valve:
DN25
Suction Port:
DN25
Vacuum Degree:
0.098Mpa
Supply Ability
Supply Ability:
300 Set/Sets per Month Max annual output 3600 sets , min output 3000 sets factory price
Packaging & Delivery
Packaging Details
Standard export carton and wooden case with inner efficient protections( light but protective) . For the safety of the glass components ( pipes , funnels, etc ) and accessories, some foam boards and bubble films will be put into carton package or the wooden package .
Neutral package and other packages with custom made are also available . Please give us detailed requirements of your packages in advance .
Port
Port of departuring: Shanghai/ Nanjing / Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 7 10 15 To be negotiated
Product Description
Vacuum nutsche filter is my company according to the actual needs of the general biological pharmaceutical development company, on the basis of the existing single-layer glass reaction kettle to improve development of derivative products, mainly used for liquid-liquid extraction, and can be used in normal temperature reaction. Through actual use, superior performance, by experts, professor of Chinese academy of sciences, new drug research and development the user's consistent high praise.
Product Features 1. High quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts 2. Perfect sealing property and no dead corner design for charging solution or power more easily 3. One vacuum valve for connecting vacuum pump for processing vacuum filtration 4. Cost-saving modular design and can be customized by clients’ requirements 5. Safe in operation, easy to move around with lockable casters. Product Applications Vacuum suction filters are widely used in Petroleum Industry , Chemical Industry , Food & Beverge Factory , Pharmaceutical Factory , Insectcide Factory , Metallurgical Industry , Scientific Institution , Environment Protection , Universities , Construction & Building areas , Biology , Cosmetics , Kilo Labs , Pilot Plant , Farms , Plant Oil & CBD Oil Extraction and Purification , etc .
Product Paramenters
Product Model
ZKQ-20L
ZKQ-50L
ZKQ-100L
ZKQ-200L
Glass Material
G3.3 high borosilicate glass
G3.3 high borosilicate glass
G3.3 high borosilicate glass
G3.3 high borosilicate glass
Filter Funnel Size
φ230*270mm
DN300*300mm
DN300*420mm
DN400*400mm
Material and Size ofSeive Plate
PTFE/φ230
PTFE/φ300
PTFE/φ300
PTFE/φ400
Filtering Device
filter paper or filter cloth
filter paper or filter cloth
filter paper or filter cloth
filter paper or filter cloth
Spherfical Collecting Bottle
20L
50L
100L
200L
Openings of Collecting Bottle
3
3
3
3
Suction Port
DN50
DN80
DN80
DN80
Exhaust Port
DN15
DN25
DN25
DN25
Discharge Valve
DN25
DN25
DN25
DN25
Distance Between Discharge Valve and Ground
300mm
300mm
300mm
300mm
Vacuum Degree
-0.098Mpa
-0.098Mpa
-0.098Mpa
-0.098Mpa
Frame Material
SUS304 movable framework
SUS304 movable framework
SUS304 movable framework
SUS304 movable framework
Details Images
Packaging & Shipping
Packaging: Standard carton package and wooden case package with inner protections( light weight material with protective ) . Some foam boards and bubble films wil be put into the inner package for any damage or other breakage with human wrong handling in loading and uploading . Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics ) .
Related products

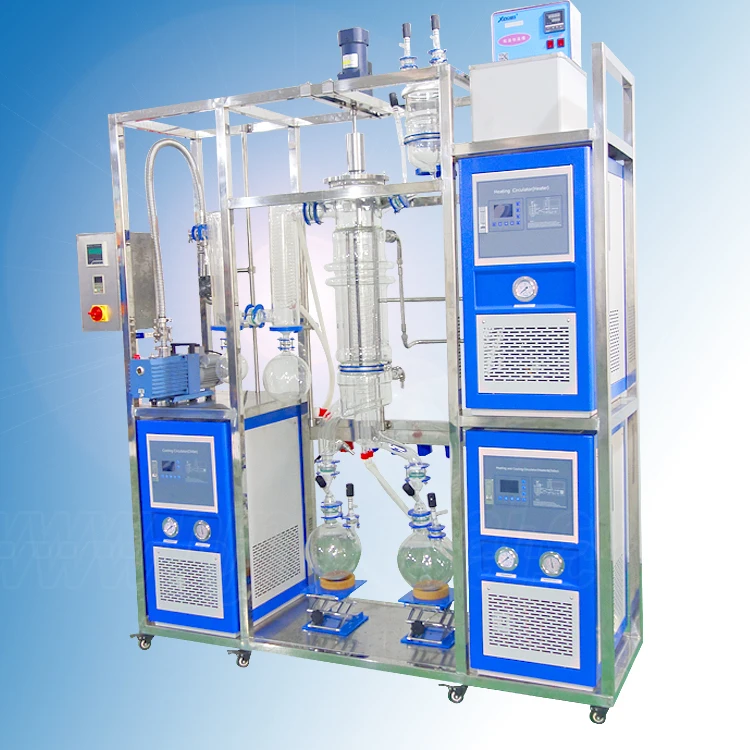

Customized 20L ultrasonic reactor , 80L three layer reactor with chiller , 10L chemical reactor with PLC control , 30L glass reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device , 50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .
