50l Ex Rotary Evaporator

FOB Reference Price:Get Latest Price
$1,000.00 - $4,000.00 / Set | 1 Set/Sets (Min. Order)
Application:
Distillation Pharmaceutical Processing
Model Number:
FBXZ-50L FBXZ-30L FBXZ-20L FBXZ-10L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, crystallize
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Jiangsu, China
Brand Name:
XINCHEN
Voltage:
380V/50Hz(could customized)
Power:
6KW
Dimension(L*W*H):
1350*770*2150mm
Weight:
105kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
Easy to Operate
Product name:
Vacuum Industrial Evaporator
Rotary flask:
50L
Receiving Flask:
20l
Rotating Speed:
20~110rpm
Sealing:
PTFE +fluororubber Sealing
Motor power(W):
370W
Condenser:
Main Condenser+Assistant Condenser
Vacuum degree:
0.098Mpa
Water(Oil) bath power:
6 KW
Main uses:
Industrial Distillation
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
shanghai, ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Description:

The working principle of rotary evaporator is use the glass bottles packed materials to optional and uniform heating, under the condition of connection with negative pressure, the system makes the material boiling point decreased, the liquid film formation and evaporation, and then recovery menstruum by the glass coil condenser and a collecting bottle, especially suitable for concentration, crystallization, separation for heat sensitive material, and recovery menstruum etc.

Model
FBXZ-5L
FBXZ-10L
FBXZ-20L
FBXZ-50L
Rotary flask
5L
Flange mouth Ø50
10L
Flange mouth Ø95
20L
Flange mouth Ø125
50L
Flange mouth Ø125
Receiving flask
3L
5L
10L
20L
Rotation speed
20-140rpm
20-130rpm
20-130rpm
20-110rpm
Rotary motor power
40W
180W
180W
370W
Condenser pipe
Vertical dual coil pipe
Vertical type, main condenser + auxiliary condenser, efficient tri-backflow condenser pipe
Bath material
Stainless steel
Temperature range
RT-100℃
Maximum vacuum degree
-0.096Mpa
Evaporative capacity
Water ≥2L/h
Alcohol ≥4L/h
Water ≥4L/h
Alcohol ≥6.5L/h
Water ≥5L/h
Alcohol ≥11L/h
Water ≥10L/h
Alcohol ≥19L/h
Lifting function
Electric lifting
Lifting stroke
0-150mm
0-160mm
0-190mm
0-180mm
Power supply
220V/50Hz
220V/50Hz
380V/50Hz
380V/50Hz
Overall power
1.5Kw
3Kw
4.5Kw
6Kw
Dimension
830×400×1100mm
990×550×1650mm
1160×600×1780mm
1350×770×2150mm

Features:

※This machine adopts advanced frequency conversion technology and electronic speed regulation, which can ensure the stable operation of motor. So this machine has high evaporation rate, high recovery.

※Bath can reduce the damage degree in the lifting process. During the evaporation of low boiling point, collecting bottle can be immersed in bath, which can reduce the secondary evaporation.
※The collecting bottle connected by mouth ball milling, easy loading and unloading, and it has high sealing.
※High temperature durable seal, dynamic seal system has corrosion resistance and long service life, good air tightness under high temperature.
※Using Japanese technology - AC induction motor, stepless speed regulation, no brush, no spark, can work long time effectively.
※Rotary evaporator chassis, bath, main rod, shaft are made of high quality stainless steel, beautiful appearance and corrosion resistance.
※Intelligent temperature control, water and oil bath, more widely used. The temperature fluctuation is relatively small, only±0.2℃, evaporation is more stable, not easy to wash away the material.
※The series of modular design, strong expansibility, easy installation, convenient maintenance.


Detailed Images

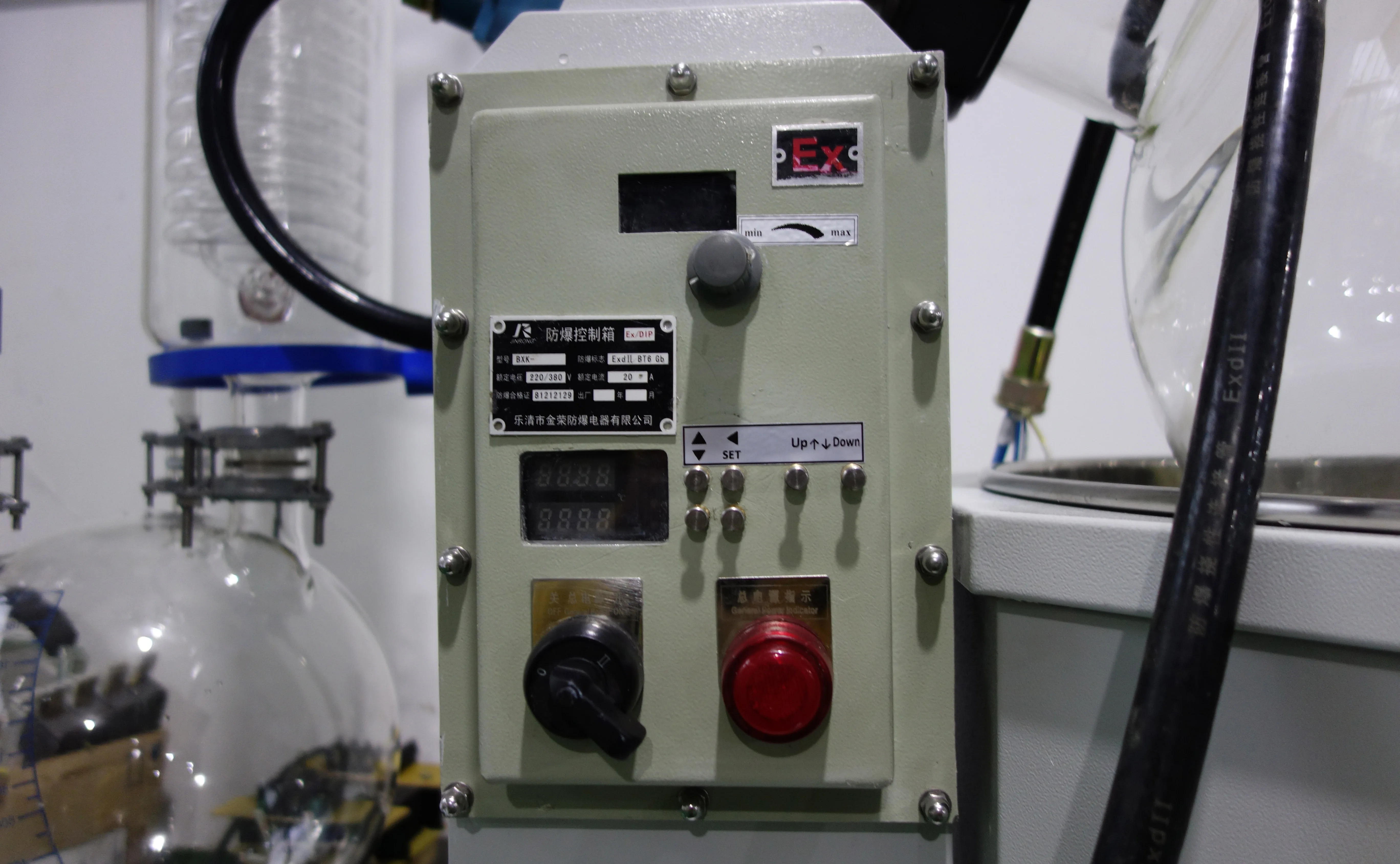

 Explosion proof control box
 Explosion proof rotary motor
PTFE sealing
