20L Jacketed glass ultrasonic crystallization reactor /nutsche filter

  • 1 - 1 Sets
    $4,000.00
  • 2 - 2 Sets
    $3,500.00
  • >=3 Sets
    $3,000.00
Model Number:
NKG-0.5KW NKG-1.0KW NKG-1.5KW NKG-2.0KW NKG-3.0KW
Samples:
NKG-0.5KW
$5,800.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 10 12 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
OEM ODM (Min. Order: 1 Sets)
Explosion Proof (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Capacity:
20l
Automatic Grade:
Automatic
Type:
Reaction Kettle
Condition:
New
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Bearing, Gearbox, Motor
Place of Origin:
Jiangsu, China
Brand Name:
XINCHEN
Voltage:
220V/50-60Hz
Power:
3000w
Dimension(L*W*H):
as design
Weight:
95kg-120kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Competitive Price
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Labs Pilot Plant Chemical Pharmaceutical Industry
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Product name:
Double Layers Jacketed Glass Reactor
Glass Material:
High Borosilicate Glass 3.3
Frame Material:
SUS 304
Heating method:
Thermal Oil Heating
Sealing Type:
Mechnical Seal
Motor:
Durable AC Induction
Agitator:
316L material
Rotating speed(rpm):
50-600rpm
Condenser:
0.3 ~3)squar Meters
Vacuum Degree:
0.098 Mpa
Supply Ability
Supply Ability:
300 Set/Sets per Month Max annual output 3600 sets , min output 3000 sets factory price
Packaging & Delivery
Packaging Details
Standard export carton and wooden case with inner efficient protections . For the safety of the glass components and accessories, some foam boards and bubble films will be put into carton package or the wooden package .
Neutral package and other packages with custom made are also available .
Port
Port of departuring: Nanjing / Shanghai / Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 10 12 15 To be negotiated
Video Description
Product Description
Our ultrasonic reactor can play a significant role in ultrafine pulverization of powdered materials in the liquid phase, petroleum emulsification extraction, nanoparticles dispersion, and precious metal purification. also can accelerate the reaction for powdered substances involved in the reaction, emulsification reaction and homogeneous reaction.
Product Advantages & Features 1. Small size, beautiful appearance and simple operation. 2. Modular design, heating module and control module are separated, safe and reliable. 3. The ultrasonic power, ultrasonic time, amplitude and frequency can be adjusted to meet the requirements of different working conditions. 4. Double temperature control inside and outside the ultrasonic chemical reactor, accurate temperature control, temperature control accuracy ± 1 ℃. 5. The mixing speed is stable and adjustable. 6. High temperature magneton stirring, temperature resistance 250 ℃. 7. Automatic resonance point and power control, without frequent manual adjustment of energy. 8.99 hour process control timer, control the total working time: from 1 second to 99 hours, pause the current running task in real time. 9. The working time is displayed in cumulative state. 10. On / off pulse timer: ensure that the high-intensity processing of temperature sensitive samples, on and off cycle can be set from 1 second to 99 minutes. 11. Automatic amplitude compensation to ensure that the probe amplitude does not change due to load changes during the ultrasonic process. 12. Sample overload / over temperature protection device. 13. Automatic frequency tracking, automatic fault alarm. Product Applications Ultrasonic jacketed glass reactors are widely used in Petroleum Industry , Chemical Industry , Food & Beverge Factory , Pharmaceutical Factory , Insectcide Factory , Metallurgical Industry , Scientific Institution , Environment Protection , Universities ,Construction & Building areas , Biology , Cosmetics , various Oil Extraction and Purification , etc .
Product Paramenters
Model
NKG-0.5KW
NKG-1.0KW
NKG-1.5KW
NKG-2.0KW
NKG-3.0KW
Resonant
20±1 KHZ
Power
0.5KW
1KW
1.5KW
2KW
3KW
Input Voltage
220 ± 10% /50 V/Hz
Temperature
-80℃ ~ 250℃
Emission head
50
50
50
50
50

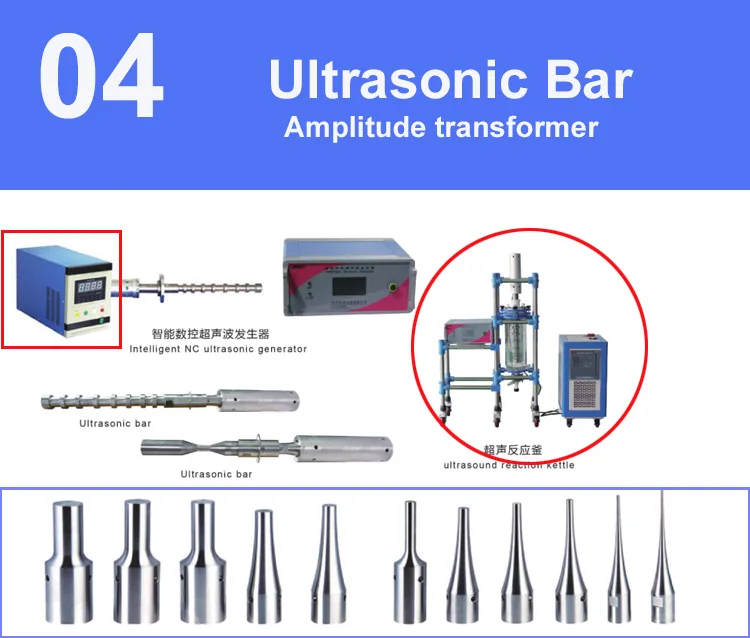

The ultrasonic generator
1. Fuzzy program-intelligent control 2. DDS frequency automatic detection and tracking
3. DSPcontrol circuit
4. Ultrasonic power output adjustable
5. Power device-IGBT
6.Continuous ultrasonic time up to 99 hours.

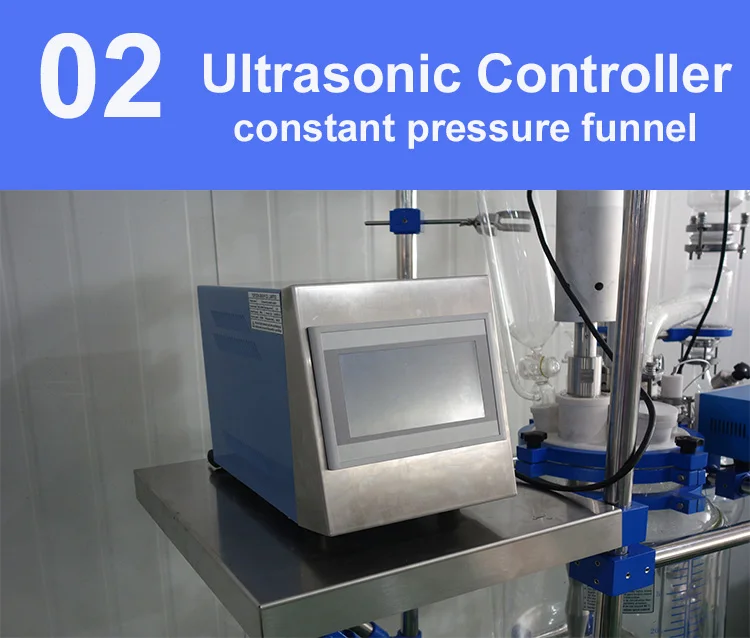

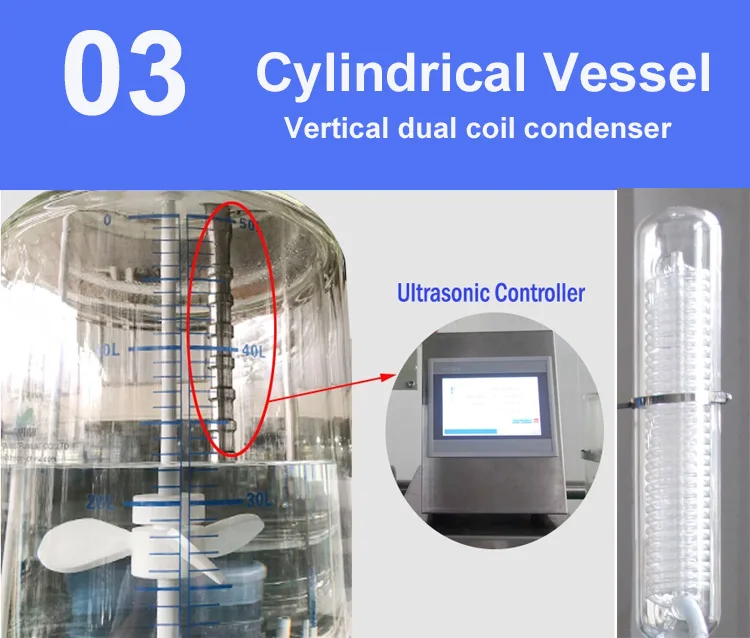

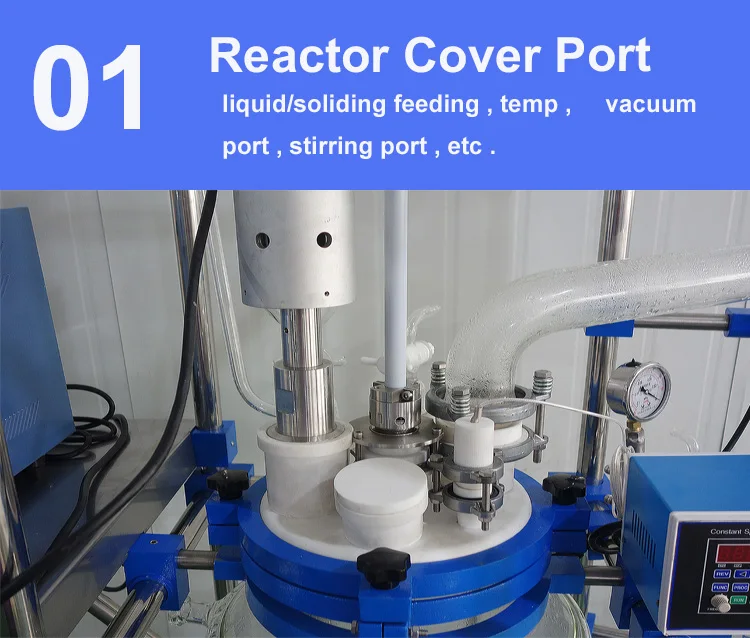

Details Images
Packaging & Shipping
Packaging: Standard carton package and wooden case package with inner protections( light weight material with protective ) . Some foam boards and bubble films wil be put into the inner package for any damage or other breakage with human wrong handling in loading and uploading . Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics ) .
